Lift Type 2 to 8 Row Planter

2 Row lift planter frame

3Point mounted frames are strong, versatile and allows for a vast variety of row configurations. A welded construction made with two 127mm beams. A central seed spacing gearbox provides 18 possible settings. The standard wheel units have 6.5/80×15 tyres and drive a shaft underneath the rear beam.

Optional platforms give easy access to the fertiliser bins

4, 6 or 8 Row lift planter frame

3Point mounted frames have ample space for the fertiliser tools on the front beam and row units on the rear beam. The side seed spacing gearbox is easily accessible and allows more than 18 standard settings. The higher wheel units use 6.5/80×15 tyres and drive a shaft on top of the rear beam

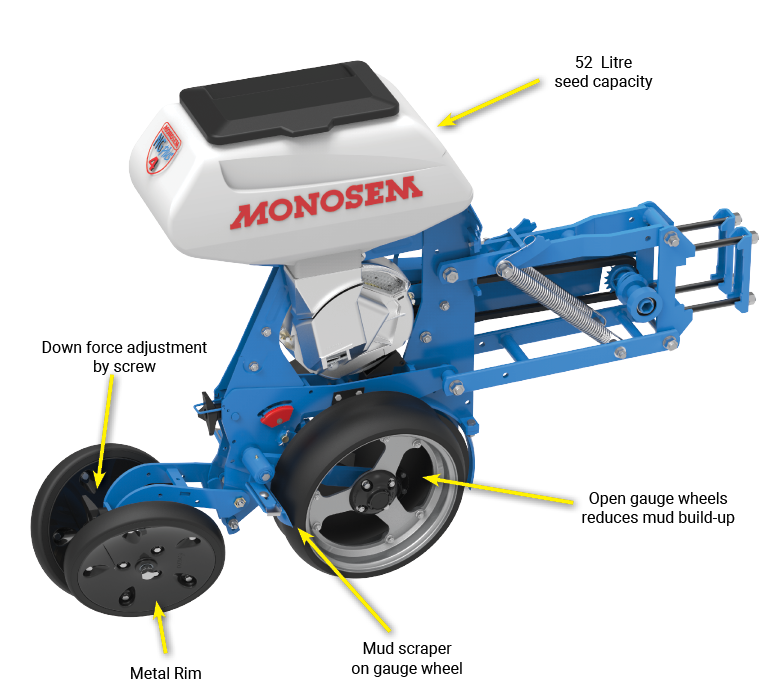

NGplus4 Row Unit

Features :

Heavy Duty adjustable down force spring in addition to standard springs

Super Duty adjustable down force double spring in replacement to standard springs

Mounting bracket for clod deflector or fixed row cleaner

Row Cleaner Options

Clod Deflector

Fixed Row Cleaner

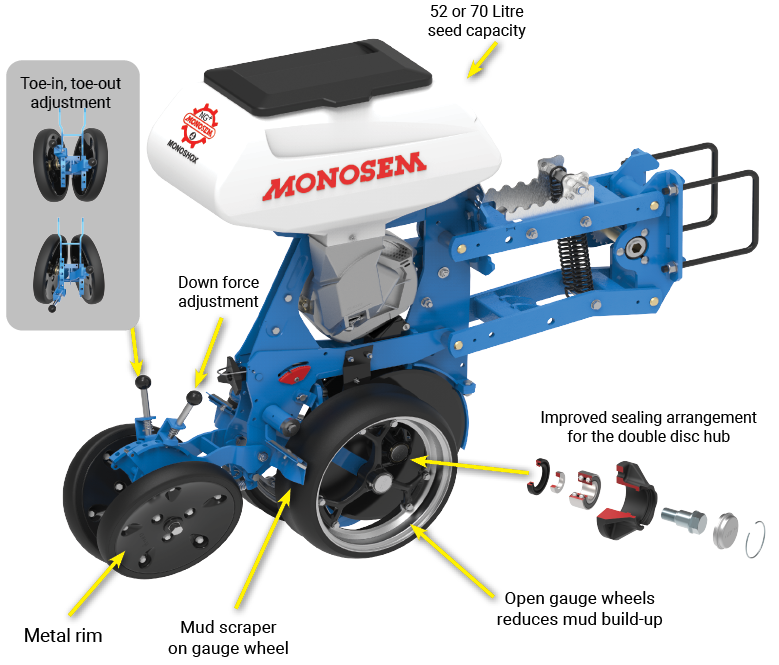

HD Row Unit

Features :

Heavy duty parallel linkage 420mm long, 150mm wide with 22mm pins and bushings

Optional SHOCK ABSORBER reduces row unit bounce to maintain consistent planting depth

Heavy duty clamps, 7 and 5 inch available

Row Cleaner Options

Clod Deflector

Fixed Row Cleaner

Adjustable Rear Wheel Bracket Options

Two Lever Bracket

adjustable toe-in, toe-out and downforce

Screw Bracket

adjustable downforce only

Closing Wheel Options

Dry Fertiliser Bins

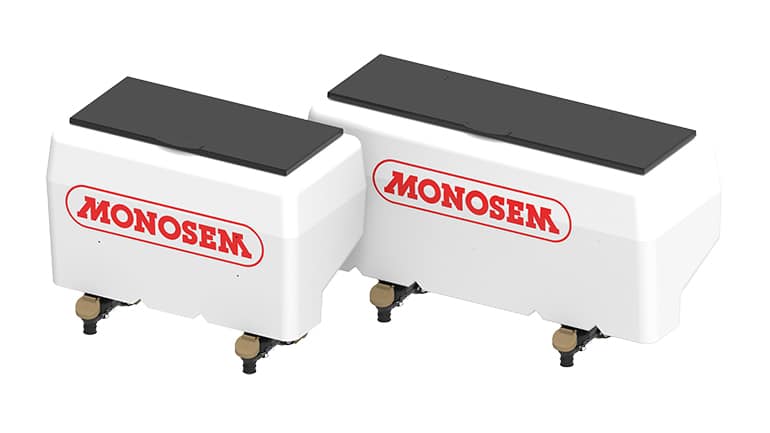

Monosem dry fertiliser bins

Dry fertiliser bins are offered with 250 and 350 litre capacity. They are made from a heavy duty polyethylene that is lightweight but still highly durable.  The lightweight tanks allow for larger fertiliser loads to be used and effectively reduces down time due to refilling.

Fertiliser Opener

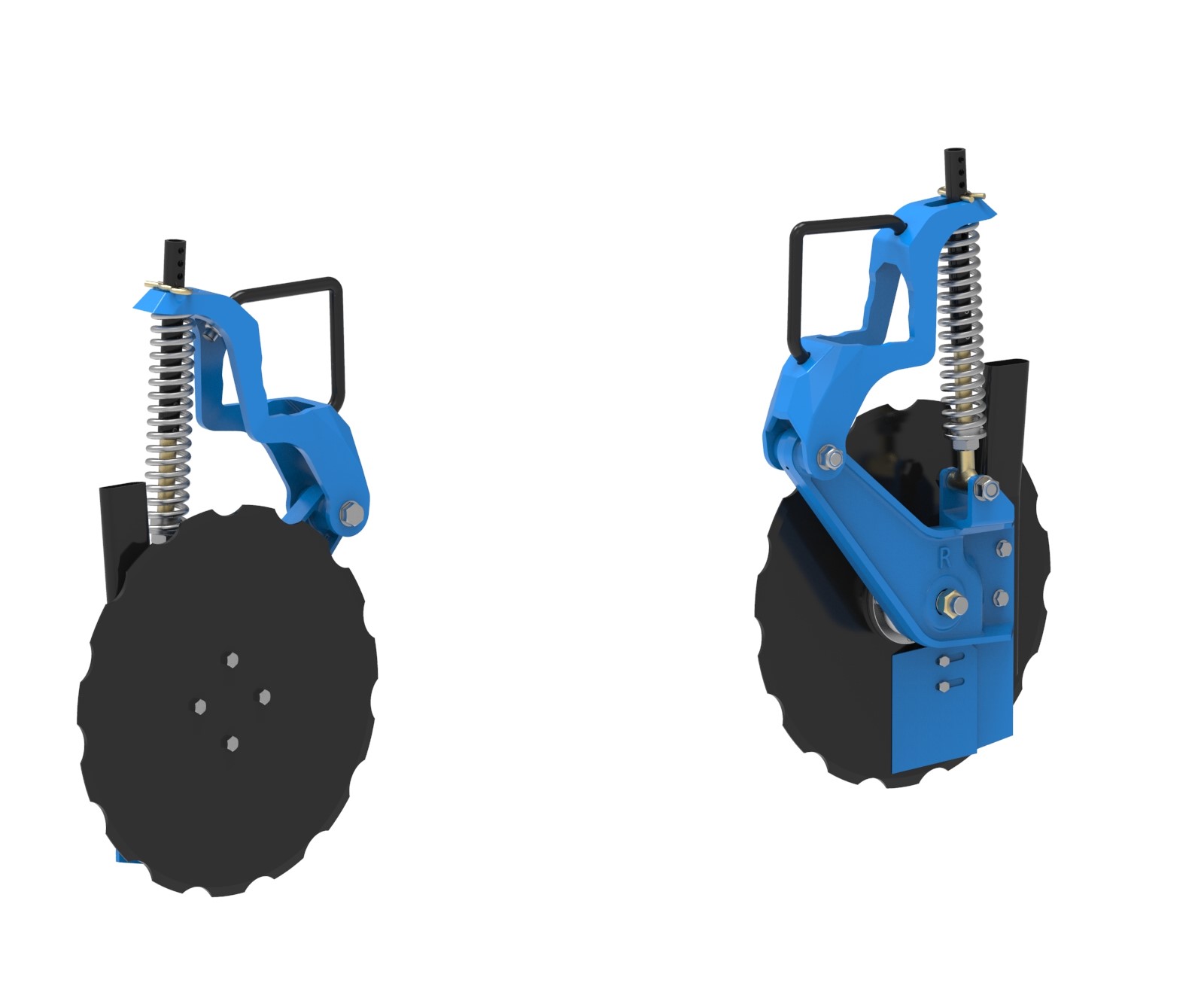

460mm Single Disc Fertiliser Opener

Most accurate dry fertiliser meter

  • corkscrew auger handles poor quality fertiliser without fertiliser build-up
  • brilliantly designed for even and consistent fertiliser output row by row

Most accurate and durable seed meter

  • accepts irregular seed shapes and sizes without planting skips or doubles
  • aluminium construction keeps it’s precision during the whole planter life

Pro Wheel Option

The press wheel has been used for years on the vegetable and sugar-beet planters. MONOSEM has adapted this concept to the multipurpose planters with a large diameter press wheel, the PRO wheel.

Consistent pressing ♦ Improved plant emergence ♦ Optimal germination ♦ Better seed placement quality

Large diameter press wheel

The PRO wheel in aluminium has a stainless steel coating and a plastic scraper. Wide diameter (295mm), it keeps its shape and offers a quality pressing and a better seed placement. By improving the seed-to-soil contact, the emergence is more rapid and regular.

Combined adjustment

The packing down pressure of the PRO wheel is adjustable. It is combined with the pressure adjustment of the rear packing unit (a).

Independent wheel

Independant from the planting system and the rear press unit, the PRO wheel follows the ground contours for a
consistent pressing.
